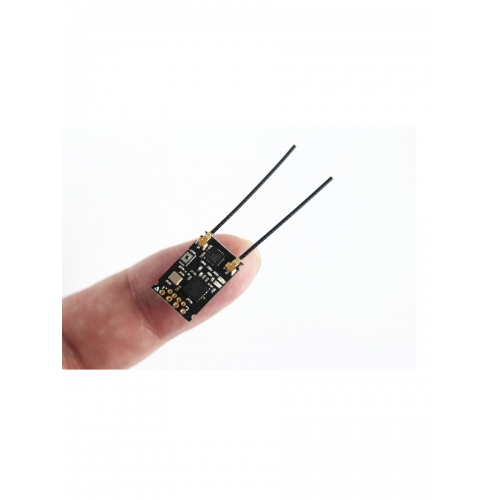

XR602T-F2 FrSky D16 compatible receiver on drones quad copter

XR600T series of receivers are super small size but long range and supporting data back receivers designed specially for FPV flight. High efficiency PA and LNA are integrated on its hardware, also two bidirectional serial ports are integrated. Several kinds of communication protocols are switchable conveniently.; We can provide up to 8 types of this series of receivers, all of them can be used on any F4 and F7 flight control board with or without signal inverter.

Features:

    1） Super small size (XR601T is 10*17*3mm, XR602T is 11*17*3mm, Note 1)

    2） Super light ( XR601T is 0.66g,  XR602T is 0.8g)

    3） All XR600T series receivers can be used on any F4 and F7 flight control board with or without signal inverter.

    4） Can connect and work on any serial port of F4 and F7 flight control board;

    5） IPEX4 antenna plug;

    6） Diversity antenna provides best range and best radio frequency performance(only XR602T series receivers support)!

    7） Supports data-back function (Note: B1 version doesn’t support this function as it is limited by its protocol)

    8） Supports working temperature measurement;

    9） Supports RSSI output;

    10） Supports normal or reversed SBUS (DMA control)

    11） Supports normal speed (100Kbs) or high speed SBUS (200Kbs, very useful for reducing time-lapse, Note 2)

    12） Supports normal or reversed Fport (DMA contro);

    13） Supports normal speed(115.2Kbs) or high speed Fport (230Kbs, helpful for reducing time-lapse, Note 2)

    14） Working current/voltage: 50mA/5.0V( when data-back function is on full power running)

    15） Supports port function configuration by user (port output protocol configuration, normal or reversed, normal speed or high speed)

    16） Supports configured data-back function (configured data-back working or not working, RF output power);

    17） Protocol switchable for SPEKTRUM DSMX/2 to SBUS and Fport protocol (A1 version)

    18） Protocol switchable for Futaba SFHSS to SBUS and FPort (B1 version);

    19） Protocol switchable for FrSky D16 to SBUS and Fport (B3 version)

    20） Protocol switchable for FlySky AFHDS-2A to SBUS and Fport (C2 version)

    21） Supports firmware online updating;

    22） It can change data output protocol and data-back protocol according to customer requirement.

• Type: CROSSOVER RX XR602T-F2(FRSKY-D16) SBUS/FPORT/RSSI/TELEM MicroFPVRX

• Modulation: Compatible FRSKY-D16

• Num of Channels: 16CH

• Size: 11*17*3mm (without antenna)

• RC Data output: SBUS(REV) & FPORT(NOR)

• Supports Telemetry;

• Telem RF Power: 20dBm;

• Supports digital RSSI output;

• Variable RF Link;

• High speed(9ms);

• Online Firmware updating;

• Supports RX working temperature measurement;

• IPEX4 antenna plug;

• Diversity Antenna;

• Weight: 0.8g

• Voltage: 5.0V

• Effective distance: >2000m

• Antenna Length:60mm(Default) or 160mm

Variable RF Link technology:

Variable RF Link technology:  When the receiver is too close to radio(remote control), normally RF signal will be blocked and meanwhile lose control happens, Variable RF Link is born for solving the problem! As soon as Variable RF Link finds that the receiver is coming close to radio, it will adjust LNA gain and PA output power lower to avoid short distance control failure automatically;  When Variable RF Link detects that the receiver is going far away from radio, it will adjust LNA gain and PA output power higher to increase RX’s working range automatically.
