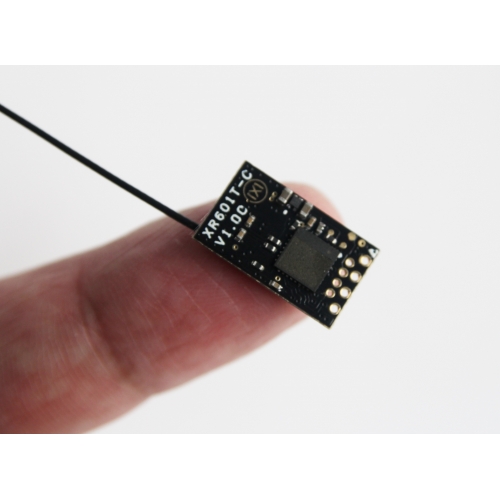

XR601T-A FlySky AFHDS 2A receiver on drone quad copter

XR601T-A is totally new designed receiver supports telemetry, which has a multifunctional UART port（DMA operation） for double and two-way communication, it can outpu SBUS and FPORT signal at the same time, also support RSSI output and online firmware updating. It is 100% compatible with FLYSKY AFHDS-2A.

PRODUCT SPECIFICATIONS

• Type:  XR601T-A(AFHDS-2A) SBUS/FPORT/RSSI/TELEM Micro FPV receiver
• Modulation: Compatible FLYSKY AFHDS-2A
• Num of Channels: 16CH
• Size: 10*17*3mm (without antenna)
• RC Data output: SBUS(REV) & FPORT(NOR)
• Supports Telemetry;
• Telem RF Power: 17dBm;
• Supports digital RSSI output;
• Variable RF Link;
• High speed(7.7ms);
• Online Firmware updating;
• Supports RX working temperature measurement;
• IPEX4 antenna plug;
• Weight: 0.66g
• Voltage: 5.0V
• Effective distance: >1200m
• Antenna Length:60mm(Default) or 160mm

Connection Diagram(Choose SBUS or FPORT):

How to Bind:

1. Power the receiver;
2. Push binding button for 2 seconds, then release it (slow flashing LED turns to fast blinking);
3. Bind your Radio according to your transmitter manual,  the fast blinking LED will turn to solid bright as soon as the binding is completed!

Telem Function(NV14):

Variable RF Link technology:

Variable RF Link technology:  When the receiver is too close to radio(remote control), normally RF signal will be blocked and meanwhile lose control happens, Variable RF Link is born for solving the problem! As soon as Variable RF Link finds that the receiver is coming close to radio, it will adjust LNA gain and PA output power lower to avoid short distance control failure automatically;  When Variable RF Link detects that the receiver is going far away from radio, it will adjust LNA gain and PA output power higher to increase RX’s working range automatically.
