Warlark Pro brushless FPV whoop ducted fan quad copter

CR166

$189.00

Submit a wholesale Inquiry
189 reward points

Please Choose:








Qty: Unit(s)

  • Description
  • Estimate Shipping Costs
  • Reviews(0)
  • After-sales service

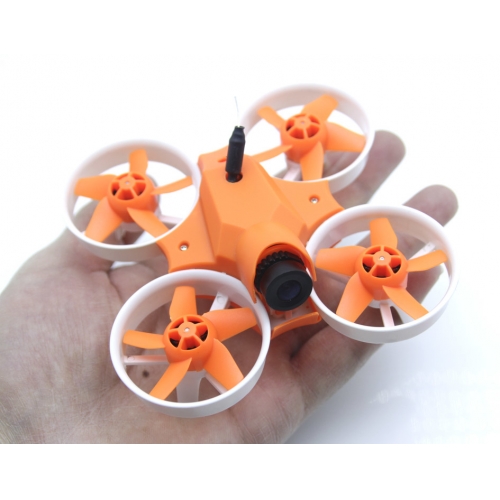

Warlark PRO-85 is a micro ducted fan FPV quad copter of 85mm diagonal motor to motor distance. Tiny and cute, it is fun of flying indoor or in park. Modularized design (4in1 ESC, Flight control board with built-in receiver, video transmitter board with built-in OSD and independent analog camera), you can upgrade or replace any of the module by just plugging or pulling out.

Features:

  1. STM32F303CCT6 main control；
  2. MPU6500 sensor is connected by SPI way.
  3. Double LDO;
  4. 1103 brushless motor（KV6400）；
  5. 40mm 5-blade propeller of high efficiency.
  6. The working current for each ESC on the 4in1 ESC can reach 4.5A.
  7. Flight control board integrated with optional receiver (there are 3 kinds of hardware: A-CYRF6936；B-CC2500；C-A7105 )
  8. Supported receiver protocols: A-DSMX/2；B-SFHSS/FRSKY；C-FLYSKY/Hubsan ( we can develop other receiver protocols according to the request of customer)
  9. Online upgrading for the integrated receiver by GUI.
  10. Analog video transmitter with 40 channels.
  11. Its VTX power output is 25MW.
  12. Online upgrading for frequency list on video transmitter.
  13. 600TVL camera of 120 degree.
  14. 20 degree adjustable for camera mounting.
  15. Built-in buzzer.
  16. Built-in BOOT switch (shared the switch for receiver binding)
  17. Flight weight: 66g(including 300mAh35C2S battery)
  18. Flight time: 4.5 minutes(300mAh7.4V)
Package includes:
1 x prebuilt Warlark Pro quad copter
4 x  40mm 5-bladePropellers (2 CW,2 CCW)
1 x 330mAh 7.4V Battery
1 x Velcro
1 x charging harness
Required:
1 x Battery Charger
1 x Transmitter
