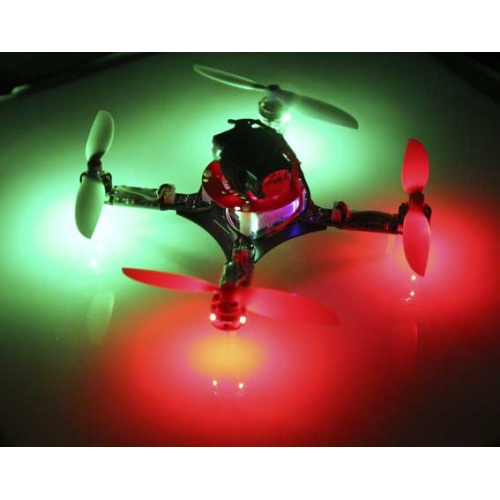

Super-X micro brushless quadcopter 2S version

Super-X is one of the lightest and smallest brushless quadcopter on the market. It is installed MX NANO OVERSKY 32 type B flight control board  (integrated with DSM2 receiver), it comes with 4 set of brushless power system providing double thrust of its own weight, so it is easy for 3D flying or installing FPV system etc.

Its size is so small that it can hover easily indoor.

Super-X features:

Distance of wheelbase: 125mm

Weight:38.2g (not including battery), 62.5 (including one 300mAh7.4V battery)

Propeller diameter:90mm

Brushless motor: MP-03 (3g, 4000KV)

Speed control: MP7A

MX NANO OVERSKY 32 type B flight control board 2S version  (integrated with DSM2 receiver)

Binding operation:

1, Press the binding switch on the receiver and then power MX NANO OVERSKY 32 type B flight control board , then release the binding switch, the LED light blinks quickly (The receiver enters binding mode)

2, Press the binding switch on DSM2 transmitter and turn on the power.

3, When the LED light changes from quick flashing to on, it indicates the binding is success, or you may repeat the above steps.

Package includes:

one MX NANO OVERSKY 32 type B flight control board

Super-X frame one set;

MP03 brushless motor 4 pcs;

MP7A brushless ARM ESC 4 pcs;

90mm rotor 8 pcs(2 sets);

Several pieces of cable;

Nylon cable ties;

1 piece of 300mAh7.4V battery

Attention: Be careful of not reversed the positive and negative pole of the battery. Please check and make sure the cables connected correctly before the first flight and make sure the rotating direction of the motors is correct.

How to unlock:

1) Pull throttle stick (THROH) to lowest point to below 1100;
2) Push Yaw to the right end or left end (according to the set up of transmitter), make it more than 1900.

set parameters up for cleanflight:
