Scisky mini radio for FPV multirotor

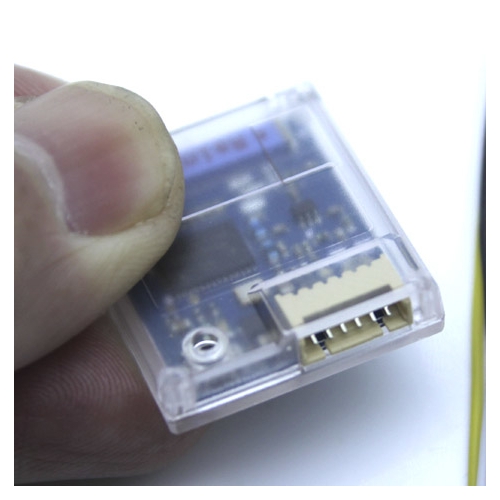

Scisky MINI Radio is a super small and light radio compared with any other similar products on market. It is based on 3DR Radio hardware and combined with years of RF design experiences. This product can be used on APM, PIX/PX4, FPV multirotors etc.





Description:

1, Size: 26.5*23.5*5.5 mm (not including the protruding part)

2, Weight: 3.2g (not including cables)

3, It compatible any 3DR 433M or 915M telemetry radios

4, It comes with integrated antenna

5, 433MHz(yellow antenna) or 915MHz(blue antenna)

6, 100 MW maximum output power (adjustable);

7,-117 dBm receive sensitivity;

8, Transparent serial link;

9, MAVLink protocol framing;

10, Frequency Hopping Spread Spectrum (FHSS);

11, Configurable duty cycle;

12, Error correction corrects up to 25% of bit errors;

13, Open-source SIK firmwar;

14, Supply voltage: 3.7-6 VDC;

15, Transmit current: 100 mA at 20 dBm;

Receive current: 25 mA;



      Port details: please check the marks at the back of the product.



Including:

1,Scisky MINI Radio-433M or Scisky MINI Radio-915M  1 piece

2,Connection cable 1 piece



Note:

1) If Scisky mini Radio can’t communicate with the 3DR 433M or 915M telemetry radio at your hand, please check if the parameter set up is same;

2) Please take care of parameter setting up, or it won’t restore factory defaults and lead to communication failure.
