Description:
It includes one Scisky F1 flight control board with an optional RX, one VTX 25MW+OSD, one analog camera
The weight for the whole set is 6.7g.
Description:
Size: 20.0*33.5*6.0mm (not including the USB protruding part)
Weight:2.5g (including FlySky compatible 7CH receiver by serial port output)
Frequency for driving motor:2k (the frequency can be set up by user, max frequency can be 32K)
Brushed ESC: continuous working current is 4.2A, max current is 6A(5S);
Integrated with DCDC voltage booster circuit( output 5.0V/500Ma), it can supply power for other device through IIC and UART port;
The hardware of the FC is based on Naze 32, test firmware is cleanflight Naze V1.9.0 and V1.8.1.
Typical use:
 Notes:
It will enters binding mode only after powered of 10 seconds automatically, you need to try to get transmitter closer to the board, something like 5cm will be better. No binding button on the board.
There are 3 kinds of hardware for its built-in compatible receiver: A---CYRF6936, B---CC2500，C---A7105. There are 6 option protocols for the built-in compatible receiver: 1=>DSMX/2; 2 =>DEVO (on testing); 3 =>Futaba SFHSS; 4=> FrSky (on testing); 5=> FlySky AFHDS; 6=>Hubsan;

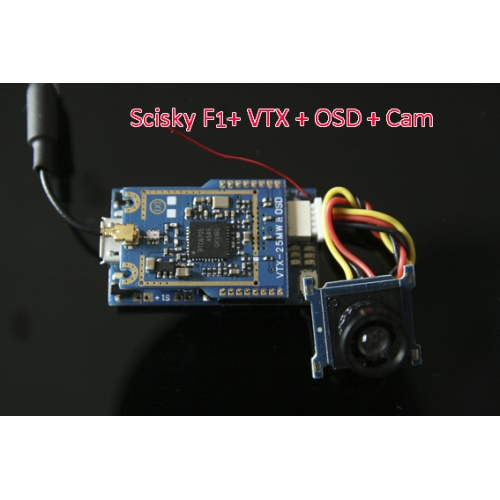

MX VTX 25MW module (video transmitter) can be plugged and installed on Scisky F3 brushed flight control board directly, no soldering is needed, and also you can plug and play MX VTX-25MW & OSD and the analog camera, please check the following picture for reference:
  The above picture shows the plugged VTX-25MW& OSD and camera installed on F3 FC.
Features:
Features:
1) STM32F103CBT6main controller;
2) MPU6500 sensor
3) 6 optional built-in compatible receivers;
4) Onboard 5V/1000mA DCDC booster circuit;
5) 4 built-in brushed ESCs (each brushed ESC can support current up to 6A);
6) No need soldering for installing VTX-25MW module or VTX-25MW & OSD module (note: analog VTX is 40CH)
7) Every built-in receiver on the board outputs receiver signal in the same 8CH PPM format and order, the channel number depends on customer’s transmitter;
8) Customer can set up the working frequency of VTX according to his own request through transmitter;
M1~M4 ports are for connecting brushed motors, each of which is marked S1, S2, S3 and S4 on the board, “+” is for positive of the brushed motor. COM1 and COM2 are for MX VTX-25MW or MX VTX-25MW & OSD.
Binding operation:
Two ways for binding operation: the first way is to long press the button for 2 seconds and enters binding mode; the second way is timeout binding mode.
The built-in receiver for entering binding mode in the first way: 3=> Futaba SFHSS compatible receiver;
The built-in receiver for entering binding mode in the second way: 1=>DSMX/2; 2 =>DEVO (on testing); 4=> FrSky (on testing); 5=> FlySky AFHDS; 6=>Hubsan;
Note: LED light A flashes quickly indicates entering binding mode, solid LED light A indicates signal is received and stable.
Frequency checking and setting up on analog video transmitter (the operation way will be changed according to feedback from customers)
6 LED lights on the board indicates the working frequency of the video transmitter in binary calculation way, LED 1, LED 2, LED 3 represent 5 groups of frequency, LED A, LED B and LED C show 8 frequencies.
Pull the throttle to lowest, press the button slightly, you can check the current working frequency of the VTX (LED lights flash twice); Push the throttle to mid range, double press the button and then enters frequency set up mode; The LED light group shows the current working frequency when the VTX enters frequency set up mode, push or pull Elevator stick up and down, you can change the frequency groups (5 groups), pull Aileron stick right or left, you can change frequency points (8 frequency points in total); After finishing frequency set up, pull or push the throttle stick to highest or lowest position, frequency set up mode quits and the frequency changes to the set up frequency which is save on VTX, LED group lights flashes twice indicates the finished operation.
 Components for option:
1）MX VTX-25MW analog module, output power: 25MW, 40 working frequencies, plug and play;
 2）MX VTX-25MW & OSD module: MX VTX-25MW integrated with OSD, plug and play;
