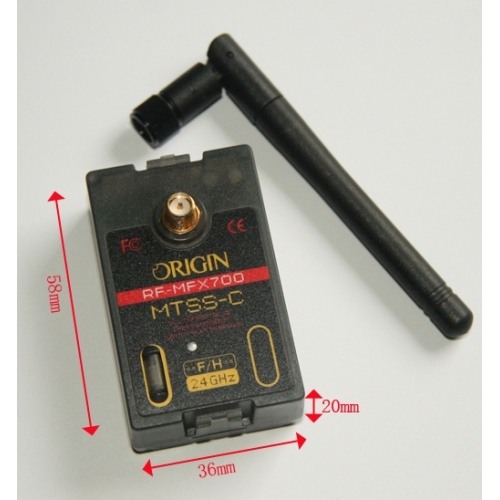

RF-MFX700 Module Systems JR version
——expanded frequency system(MTSS-A), specialized on upgrading high-end transmitter
1, Description:
Utilize brand new 2.4G expanded frequency communication system, compatible with DSM2 perfectly;
Specially for upgrading the traditional high-end transmitters, e.g.:JR 9XII，FUTABA T9C，FUTABA 10CHP， Hitec AURORA-9 etc. (installed directly)
Support FS-TH9X-B and Hobbying 9XR transmitters (installed directly);
Support any TDF transmitters that can change a module;
Support HorizonHobby products that compatible with DSM2 receiver, e.g. :McpxV1&V2、130-X、MSR-X、UMX 3-axis fixed-wing airplanes etc;
2, Specifications
Max power:20Bm
Channel numbers: 7CH(DSM2)
Working voltage:5-12V
Working current: 100mA;
Weight:43g
3, Binding
MTSS- A mode（DSM2）：
1) Turn on the receiver switch, note that the LED light on the receiver should be flashing, indicating the receiver is ready to bind. Then press the binding switch of the module, turn on the power of transmitter, then release the binding switch on the module, the LED light is flashing now;
2) When the fast flashing LED light becomes slow down, it indicates the binding completed;
3) Control the receiver through transmitter, if it is ok, indicating the binding is succeed, or please begin the binding again from the first step.
4, Transmitters fit with
RF-MFX700-F/H fit with：FUTABA T9C，FUTABA 10CHP， Hitec AURORA-9 etc
