Mini FlySky compatible 7CH receiver 1.0g



MINI series receiver is a kind of micro receivers newly designed especially for micro remote control models, it provides 4 independent output ports and an integrated output port which is for 5A brushed ESC, built-in 4 brushed ESC, you can also connect brushless ESC from outside, no need programming operation, it has 4 standard servo ports(JST1.0mm pitch). Besides, it supports PPM signal output.

 We supply 3 versions at the moment:

1) CYRF6936 hardware version-compatible with DSMX/2(7CH PPM);

2) CC2500 hardware version---compatible with Futaba SFHSS(8CH PPM) or compatible with FrSky (8CH PPM);

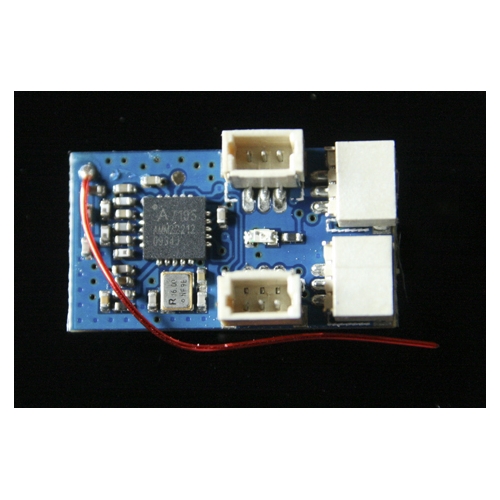

3) A7105 hardware version---compatible with FS(also named FlySky, 8CH PPM) AFHDA or Hubsan (6CH PPM)



Features:

It can still ensure of stable receiver signal when the voltage is as low as 2.5V, in this case, signal disconnection problem  when other receivers working with 1S brushless motor will never happen in future.

Hardware structure: MCU+RFIC+ ANT;

Size: 21.0*12.0*6.5mm(not including antenna)；

Weight: 1.1g (including antenna)

Supports PPM output

Working voltage: 3.0~5.0V



Binding:

The receiver will come to binding mode as soon as it is powered (LED light blinks quickly), a bright constand LED light shows the binding is finished.
