Mini APM V3.18 Combo Flight Controller GPS OSD and Power Module [CR93]

Home » Micro Quadcopter Accessories » Mini APM V3.18 Combo Flight Controller GPS OSD and Power Module

Description
Estimate Shipping Costs
Reviews(0)
After-sales service

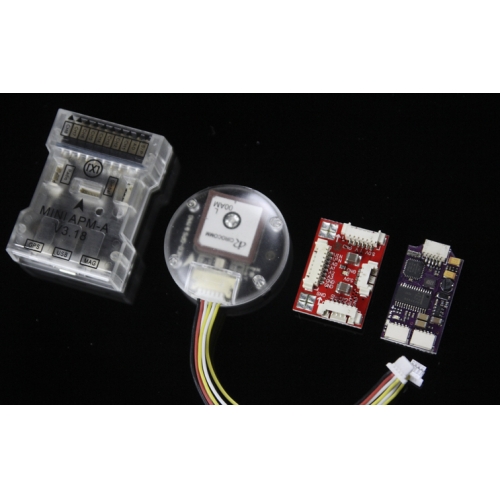

It includes: one MINI APM V3.18, one MINI GPS, one Nano OSD V1, one DCDC power modula. Its total weight is about 30 grams.

The 2.54mm output ports on MX MINI APM V3.18 is the smallest among all the APM flight control on the market, besides, the optional integrated receiver is very convenient for use. Although it is very small, it keeps all the ports that are necessary, please check details from the comparison form.

MX MINI APM V3.18 Features：

1) Super tiny design;

2) Applied 16M/10PPM crystal oscillator of high precision;

3) Standard 2.54mm output ports;

4) Supports SBUS receiver

5) Optional integrated receiver;

MX MINI APM V3.18 mechanical parameters：

1) Size not including case: 41.7*31.0*12.0mm (not including the protruding USB ports)

2) Size including the case: 43.8*33.0*14.0mm;

3) Weight: 7.5g (not including case and receiver)

4) Shock absorbing ball: Φ1.2mm*4 pcs

MX MINI APM V3.18 shape size (unit: mm)

MINI APM V3.18 diagram for port distribution:

Port comparison list between MX MINI APM V3.18 and a standard APM:

Port comparison list between MX MINI APM V3.18 and a standard APM:

Name of port or soldering pad	Standard APM	MINI APM V3.18	remarks
IN1~IN8	yes	No	supports PPM and SBUS signal input(note 1)
OUT1	yes	yes
OUT2	yes	yes
OUT3	yes	yes
OUT4	yes	yes
OUT5	yes	yes
OUT6	yes	yes
OUT7	yes	yes
OUT8	yes	yes
OUT9	yes	yes
OUT10	yes	yes
OUT11	yes	yes
A0	yes	yes
A1	yes	No
A2	yes	No
A3	yes	No
A4	yes	yes
A5	yes	yes
A6	yes	yes
A7	yes	yes
A8	yes	No
A9	yes	No
A10	yes	No
A11	yes	No
UART1(GPS port)	yes	yes
UART0(Radio port)	yes	yes
UART0 & UART2 switching soldering pad	yes	No
IIC(port for compass)	yes	yes
AT2560 SPI port	yes	yes
Option soldering pad for AT2560 SPI port CS signal	No	yes
AT32U2 SPI port	yes	No
port option for power supply way	yes	yes
PPM signal input port	yes	yes
Voltage, current sensor port (with power port)	yes	yes
soldering pad for switching inside compass and outside compass	yes	yes
USB port	yes	yes
PPM signal output port	No	yes

Note:

1) It can support any receiver through a PWM to PPM converter from outside; It supports SBUS signal directly for a standard order from customer

2) A case will be included for a standard order.

The comparison between MX MINI APM V3.18 combo and old version MINI APM combo ( power module is same, so we didn’t put it in the picture)

1) Appearance comparison:

2) Weight:

The optional GPS module are the following three (NEO-6M，NEO-M8N，LEA-6H；all of them are integrated with compass and LED of 3 colors and controller):
