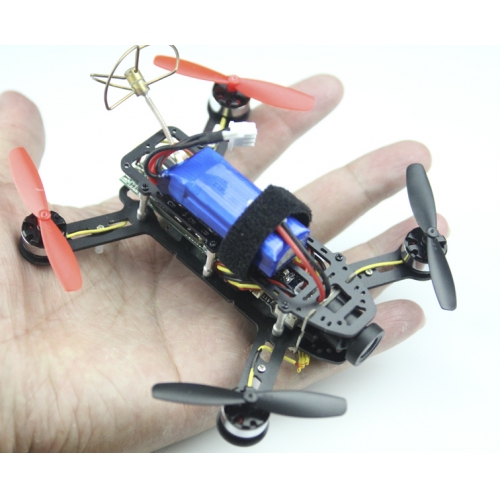

Description: Flight weight: 77g including all the parts fully assembled, motor to motor distance is 120mm. Flight time is about 10 minutes with 300mAh7.4V35C battery. The frame is redesigned on the base of original LKTR120, so it can fit our 1280*720P/30 camera perfectly, the standoffs is aluminum made 14mm one, stronger and light. Included in box：
1） One set of LKTR120 V2 frame
2） DP03 6500KV brushless motor : 4 pcs (weight is 3g, 6500KV, with 1.5mm shaft)
3） MP-7A ESC: 4 pcs;
4） 2 sets of 56mm propeller (8 props)
5） One piece of MX-VTX-B with clover antenna;
6） One set of MINI DV（720P/30F，120-angle lens）
7） One piece of MX OVERSKY 32 flight control board (integrated with DSM2 7CH receiver, supports firmware of BaseFlight and CleanFlight)
8） 1 pcs of 300mAh25C7.4V battery;
Binding operation:
1) Press the binding switch on the receiver (green LED is on),then power FC board, release the binding switch, the red LED on the receiver flashes quickly (the receiver enters binding mode);
2) Press the binding switch on the DSM2 transmitter and then turn on the power;
3) When the fast flashing red LED on the receiver is off and then comes to bright constantly, it indicates the binding is succeed, or repeat the above process.
Unlock operation:
Throttle to THR, Elevator to PITCH, Aileron to ROLL, Rudder to YAW
Unlocking: pull the throttle to the lowest, turn YAW to the right end (if it is still unlocking, please set range of YAW and THR to 120%, and check the channel direction and then try)
VIDEO (short)
http://v.youku.com/v_show/id_XMTM1NTkxNjIzMg==.html
How to unlock or ARM the motors from a customer after binding:
It finally works! YESSSS!!! - Guess what the problem was?? - The default setting of Minimum Throttle was at 1150ms. Putting this on 1050 made it armable... I found out about that late last night. Now this morning I'll do my maiden-flight!! - As I am experienced in Copters and all the functions seem to work properly, this should be fun! :-) Thank You for Your support, maybe You can put this on Your site to help others, because I read a lot from other pilots having problems arming the little quad, especially with DX7... All goods are not marked are three packs of shops Customer Videos: See all 0 videos
