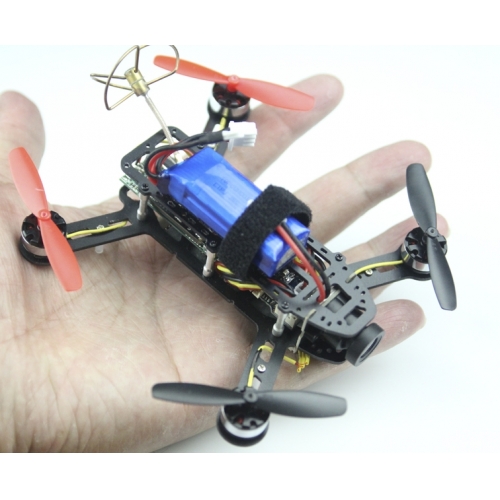

LKTR120 V2 FPV quadcopter fully assembled 77g

Flight weight: 77g including all the parts fully assembled, motor to motor distance is 120mm.

Flight time is about 10 minutes with 300mAh7.4V35C battery.

The frame is redesigned on the base of original LKTR120, so it can fit our 1280*720P/30 camera perfectly, the standoffs is aluminum made 14mm one, stronger and light.

Included in box：
1） One set of LKTR120 V2 frame
2） DP03 6500KV brushless motor : 4 pcs (weight is 3g, 6500KV, with 1.5mm shaft)
3） MP-7A ESC: 4 pcs;
4） 2 sets of 56mm propeller (8 props)
5） One piece of MX-VTX-B with clover antenna;
6） One set of MINI  DV（720P/30F，120-angle lens）
7） One piece of MX OVERSKY 32 flight control board (integrated with DSM2 7CH receiver, supports firmware of  BaseFlight and CleanFlight)
8） 1 pcs of 300mAh25C7.4V battery;

Video (short)

http://v.youku.com/v_show/id_XMTM1NTkxNjIzMg==.html

How to unlock or ARM the motors from a customer after binding:
It finally works! YESSSS!!! - Guess what the problem was?? - The default setting of Minimum Throttle was at 1150ms. Putting this on 1050 made it armable...

I found out about that late last night. Now this morning I'll do my maiden-flight!! - As I am experienced in Copters and all the functions seem to work properly, this should be fun! :-)

Thank You for Your support, maybe You can put this on Your site to help others, because I read a lot from other pilots having problems arming the little quad, especially with DX7...
