This version doesn't include VTX and DV

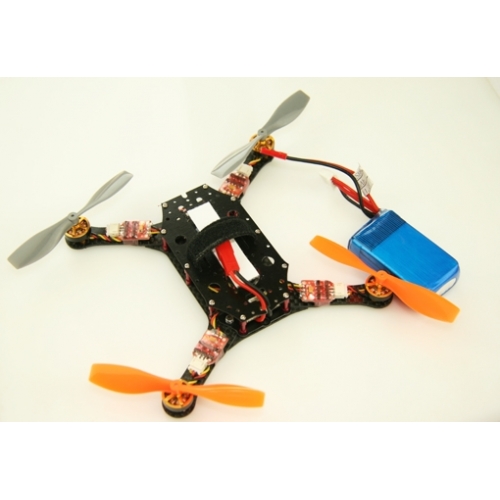

Hermit 145 is a newly designed micro FPV quad copter, only 140mm motor to motor size can it fly in the narrower and confined space easily. Although it is very small, it can install a 5.8G video transmitter(VTX), a DV of 120-angle lens, a flight control board integrated with receiver, OSD (option) and so on. Besides, you can adjust the distance of motor to motor through the frame, and the view angle of DV is adjustable too.

This product comes in kit form, assembly is required

Features:

1） Weight: 67g (not including battery)

2） Flight weight: 98.0g (450mAh 25C7.4V)

3） Flight time: 9 minutes ( with 2S 450mAh 25C battery, VTX and DV on working)

4） Motor to motor distance: 145mm, 150mm, 155mm adjustable;

5） View angle of DV is +/- 25 angle adjustable;

6） Applied high efficiency brushless motor, its weight is 3g, KV is 4000;

7） Applied micro 5.8G VTX (200MW) comes with clover antenna, only 6.0 grams;

8） Applied super light DV, it is 720P/30F and with 120-angle lens, it supports real time AV output, its Micro SD can support 32G at the most, Micro SD is not included.

9） Integrated with DSM2 compatible 7CH receiver;

Hermit 145 compared with R7008SB receiver on size:

Supply way：KIT；

Included in box：

1） One set of Hermit 145 frame

2） MP03 brushless motor : 4 pcs (weight is 3g, 4000KV, with 1.5mm shaft)

3） Mu-3A ESC: 4 pcs;

4） 2 sets of propeller (8 props)

5） One piece of MX OVERSKY 32 flight control board (integrated with DSM2 7CH receiver, supports firmware of BaseFlight and CleanFlight)

6） 1 pcs of 450mAh25C7.4V battery;

Note:

1) The integrated DSM2 compatible 7CH receiver outputs data through serial port;

2) It supports outside receivers such as PPM, DSM2/DSMX, SUMD or SBUS (revert circuit needs to be added)

3) You can also choose Mu-3Aa-L1 which was installed on the motor carbon arm(only for 150mm and 155mm motor to motor distance);

4) MX NANO CC3D flight control is an option;

5) The max flying weight should not be more than 120g

6) 99% of the quadcopter was designed for plug and play, no need more solder, but for power cable, customer need to solder it themselves.

7) We can provide both RHCP and LHCP clover antenna, please let us know which one your prefer when you make the order.

Binding operation:

1) Press the binding switch on the receiver (green LED is on),then power FC board, release the binding switch, the green LED on the receiver flashes quickly (the receiver enters binding mode);

2) Press the binding switch on the DSM2 transmitter and then turn on the power;

3) When the fast flashing LED on the receiver is off and then comes to bright constantly, it indicates the binding is succeed, or repeat the above process.

Unlock operation:

Throttle to THR, Elevator to PITCH, Aileron to ROLL, Rudder to YAW

Unlocking: pull the throttle to the lowest, turn YAW to the right end (if it is still unlocking, please set range of YAW and THR to 120%, and check the channel direction and then try)

For those NO FPV Hermit but with shaking and viberation problem, please change the following parameter:

Videos:

https://www.youtube.com/watch?v=meo5jDbAQfU&feature=youtu.be

The following are reference for configured parameter , especially PID parameter is for reference:
