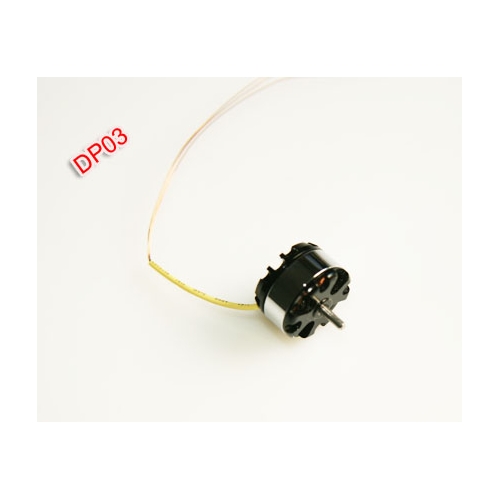

DP03 3.5g brushless outrunner motor 1S version 6500KV

OVERSKYRC developed a new motor named DP03, it is the smallest brushless motor specially for multirotor use in the world, it is also the smallest motor in the world that can drive 5030 propeller directly at high efficiency. You can use it both on 1S and 2S by changing propeller size accordingly.

Test Data on 1S:

Weight:3.6g

KV:6500

Idle current:0.1A/3.7V

Max current:2A



Test result on 5 inch propeller:

3.7V 0.6A 15g thrust

3.7V 1.5A 35g thrust (MAX)

As it is a very small motor, propeller saver is not recommended, because the propeller saver will be too heavy compare with such a small motor, you can use a plastic tube on the shaft and push the propeller onto the shaft.

Diameter of the motor is 14mm

Shaft is 1.5mm

Screw hole spacing is 8.5mm, the screw is M1.4*3
