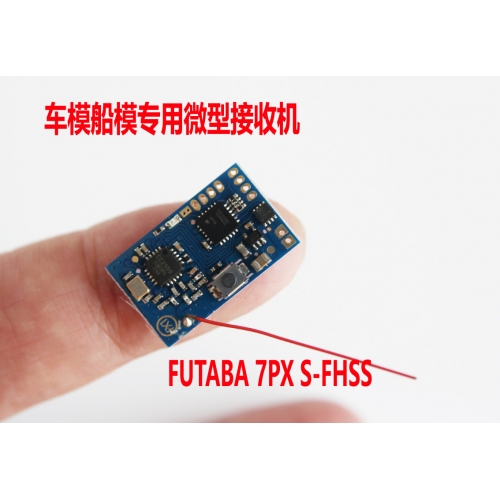

Car receiver FUTABA SFHSS 8CH 2.4Ghz Receiver With PPM Output

Description:

- Item Name: FUTABA SFHSS8CH Micro RC Receiver for car model use

- Channels: 8 channels (8 channels PPM)

- 1.8A Bi-Directional Brushed Motor Driver controlled by throttle channel

- Receiving Sensitivity: -99dBm

- Frequency Range: 2.4-2.48GHz

- Power: 3.7-5V DC

- Weight: 0.82g

- Antenna Length: 30mm

- Size: 21mm*13mm*2.5mm

- Color: Blue

Package Included:

1 x  FUTABA SFHSS8CH Micro Receiver

Signal Output:

CH1-CH8 output normal PWM signal

When CH8 is connected to GND, CH1 output 8 channel PPM signal

1.8A Bi-Directional Brushed Motor Driver controlled by throttle channel (Channel 3)

Bind and Failsafe:

Power on the transmitter and receiver. Adjust transmitter’s each channel to the exact position you want to have in failsafe mode. Transmitter set to pair mode. Receiver ‘s led should be on. Long press the pair button. After around 2 seconds the LED will turn to fast flashing first then turn to on status again. Now the pairing is done and the failsafe data is saved. Power off the transmitter and receiver then power on again then the receiver will work.
