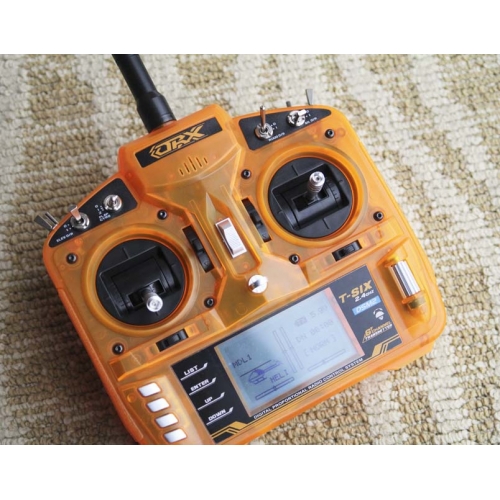

2.4GHz DSM2 Compatible 6CH Transmitter w/10 Model Memory 3-Posv

This is a brilliant, fully programmable 6 channel 2.4GHz DSM2 compatible transmitter that is loaded with features. Covering just about everything for fixed wing, helicopters and multi-rotors , it supports multiple wing types, multiple swashplate types, channel mixing, subtrim, exponential, dual rates, travel adjustment, servo monitor, graphic pitch/throttle curves, 10 model memory and so much more! This little gem even features an adjustable RF power output setting in the menu, allowing users to switch between US and EU power standards.



All of the programming functions are displayed on the large and easy to read backlit LCD display. You can easily navigate through the menus with the convenient scroll wheel, or by using the menu buttons. The menu system is very intuitive and easy to use, unlike some other transmitters on the market today that require studying of the manual to operate.



When it comes to powering your transmitter, it has you covered for just about any battery type. It can operate on 4 x AA size Alkaline, NiMH or NiCD cells, but also features an in-built JST plug in the battery compartment allowing you to use a 2 cell LiFE or LiPO pack as well! The transmitter's low voltage battery alarm is adjustable via the menu to suit whichever battery chemistry you choose.



Because the transmitter operates on DSM2 compatible protocol , it is compatible with our DSM2 compatible receivers installed in Super-X, Hermit 145 V1, V2 quadcopter.







Features:

• **NEW** 3-pos Flap/Gyro switch, ideal for use with mutli-rotor aircraft flight mode selection

• Compatible with all DSM2 Receivers

• 6 Channel Operation

• Supports 3 Wing/Tail Mixes (Dual Aileron/Elevon/V-Tail)

• Supports 2 Swashplate Types (1 Servo 90°/CCPM 120°)

• 5 Point Graphic Pitch/Throttle Curves

• Adjustable Gyro Gain

• Dual Rates and Exponential

• Servo Reversing (all 6 channels)

• Channel Mixing

• Sub Trim and Travel Adjust

• Flaps and Differential

• Throttle Hold

• Large Backlit LCD Display

• 10 Model Memory

• Adjustable RF Power Output (US and EU Selectable via Menu)

• Integrated Timer

• Adjustable Stick Length

• Trainer Port

• Supports Alkaline, NiMH, NiCd, LiPo and LiFe batteries



Specs:

Frequency: 2.4GHz

Modulation: DSM2

No. of Channels: 6

Model Memory: 10

Stick Mode: Mode 2 (left stick throttle)



Includes:

 2.4GHz DSM2 Compatible 6CH Programmable Transmitter (Mode 2 version)

User Manual



Requires:

2.4GHz DSM2 compatible receiver

4 x AA batteries or 2S transmitter battery w/JST plug
